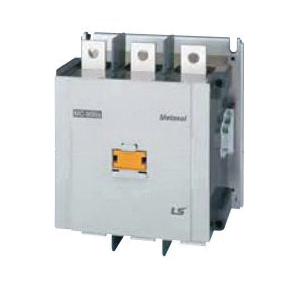

LS Metasol Series 1372000300 Magnetic Contactor, 100 to 240 VAC/100 to 220 VDC Coil, 3NO, 3 -Pole
LS Metasol Series 1372000300 Magnetic Contactor, 100 to 240 VAC/100 to 220 VDC Coil, 3NO, 3 -Pole 1372000300LS Electric Magnetic Contactor, Series: Metasol Series, 1000 V, 500 A, 50/60 Hz, 280 kW, 100 to 240 VAC/100 to 220 VDC Coil Voltage, 1000 VA Inrush, 29 VA Holding Coil Power Rating, 3 Poles, 3NO Contact Configuration, Auxiliary Contact, DIN Rail, Screw Mounting, 800AF Frame, Hex Bolt Terminal, 350 to 800 kcmil Wire, NEMA Rating: 6, IP Rating: IP20, 1200 cycles Operating Cycles, -5 to 55 deg C, 12.28 in Height, 11.22 in Width, 9.66 in Depth, Normal 2NO, Normal 2NC Auxiliary Contact Configuration
| Additional Information | : | Normal 2NO, Normal 2NC Auxiliary Contact Configuration |
| Amperage Rating | : | 500 A |
| Coil Power Rating | : | 1000 VA Inrush, 29 VA Holding |
| Coil Voltage | : | 100 to 240 VAC/100 to 220 VDC |
| Contact Configuration | : | 3NO |
| Contact Type | : | Auxiliary |
| Depth | : | 9.66 in |
| Frame Size | : | 800AF |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 12.28 in |
| IP Rating | : | IP20 |
| Mounting Type | : | DIN Rail, Screw |
| NEMA Rating | : | 6 |
| Number of Poles | : | 3 |
| Operating Cycles | : | 1200 cycles |
| Power Rating | : | 280 kW |
| Series | : | Metasol Series |
| Temperature Rating | : | -5 to 55 deg C |
| Terminal Type | : | Hex Bolt |
| Voltage Rating | : | 1000 V |
| Width | : | 11.22 in |
| Wire Size | : | 350 to 800 kcmil |
