LS 3802003800 3802003800

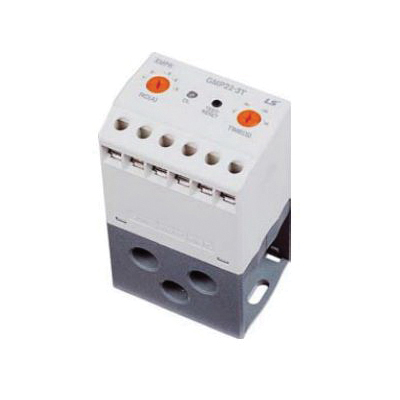

LS Electric 3802003800 Electronic Motor Protection Relay

LS GMP Series 3802003800 Electronic Motor Protection Relay, 1 to 5 A, 2SPST

LS GMP Series 3802003800 Electronic Motor Protection Relay, 1 to 5 A, 2SPST 3802003800

LS Electric Electronic Motor Protection Relay, Series: GMP Series, 110/220 V Input, 1 to 5 A, 0.18 to 0.75 W, 50/60 Hz, 3 Phase, 500 VDC Insulation Voltage, 100 MOhm Resistance, 2SPST Contact Configuration, 5 A Contact Rating, Tunnel Terminal, LED Display, Manual, Electrical Reset, -25 to 70 deg C, 87.5 mm Height, 53 mm Width, 38 mm Depth, Red/Green Trip Indicator

Additional Information      :      Red/Green Trip Indicator
Amperage Rating      :      1 to 5 A
Contact Configuration      :      2SPST
Contact Rating      :      5 A
Depth      :      38 mm
Display Type      :      LED
Frequency Rating      :      50/60 Hz
Height      :      87.5 mm
Input Voltage      :      110/220 V
Insulation Voltage      :      500 VDC
Phase      :      3 ph
Power Rating      :      0.18 to 0.75 W
Reset Type      :      Manual, Electrical
Resistance      :      100 MOhm
Series      :      GMP Series
Temperature Rating      :      -25 to 70 deg C
Terminal Type      :      Tunnel
Width      :      53 mm
  • Definite/inverse time protection for a variety of ratings
  • Ground fault protection model
  • LED based display of cause of failure
  • MC direct coupling, penetration, and terminal type sharing
  • Integrated digital motor protection relay using MCU (microprocessor control unit)
  • Applicable to invertor circuits
  • Saves the recent cause of failure
  • Shares the terminal contact and penetration-type
  • Perfect connection with LS digital contactor Metasol MC
  • Various installation methods
  • Wide current control range
  • Acquired and S-Mark (safety certification), first in the industry
  • Remarkable noise reduction
  • Inverse time characteristic for motor protection
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/LS_3802003800_Catalog.pdf
