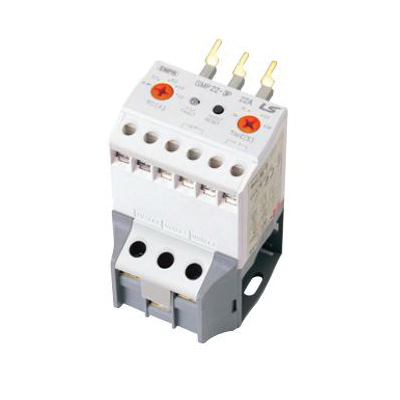

LS Electric 3802008500 Electronic Motor Protection Relay

LS GMP Series 3802008500 Electronic Motor Protection Relay, 4.4 to 22 A, 2SPST

LS GMP Series 3802008500 Electronic Motor Protection Relay, 4.4 to 22 A, 2SPST 3802008500

LS Electric Electronic Motor Protection Relay, Series: GMP Series, 110/220 V Input, 4.4 to 22 A, 1.1 to 4 W, 50/60 Hz, 3 Phase, 500 VDC Insulation Voltage, 100 MOhm Resistance, 2SPST Contact Configuration, 5 A Contact Rating, Pin Terminal, LED Display, Manual, Electrical Reset, -25 to 70 deg C, 87.5 mm Height, 53 mm Width, 79.5 mm Depth, Metasol Direct Coupling Pin, Red/Green Trip Indicator

Additional Information      :      Metasol Direct Coupling Pin, Red/Green Trip Indicator
Amperage Rating      :      4.4 to 22 A
Contact Configuration      :      2SPST
Contact Rating      :      5 A
Depth      :      79.5 mm
Display Type      :      LED
Frequency Rating      :      50/60 Hz
Height      :      87.5 mm
Input Voltage      :      110/220 V
Insulation Voltage      :      500 VDC
Phase      :      3 ph
Power Rating      :      1.1 to 4 W
Reset Type      :      Manual, Electrical
Resistance      :      100 MOhm
Series      :      GMP Series
Temperature Rating      :      -25 to 70 deg C
Terminal Type      :      Pin
Width      :      53 mm
  • Definite/inverse time protection for a variety of ratings
  • Ground fault protection model
  • LED based display of cause of failure
  • MC direct coupling, penetration, and terminal type sharing
  • Integrated digital motor protection relay using MCU (microprocessor control unit)
  • Applicable to invertor circuits
  • Saves the recent cause of failure
  • Shares the terminal contact and penetration-type
  • Perfect connection with LS digital contactor Metasol MC
  • Various installation methods
  • Wide current control range
  • Acquired and S-Mark (safety certification), first in the industry
  • Remarkable noise reduction
  • Inverse time characteristic for motor protection
