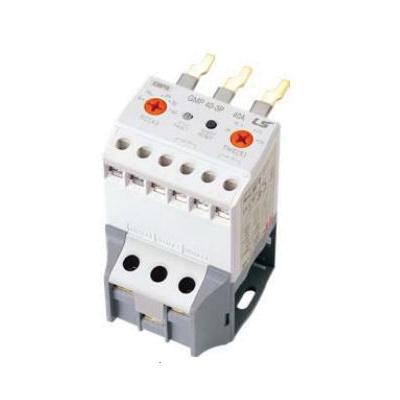

LS Electric 3804005000 Electronic Motor Protection Relay
LS GMP Series 3804005000 Electronic Motor Protection Relay, 8 to 40 A, 2SPST
LS GMP Series 3804005000 Electronic Motor Protection Relay, 8 to 40 A, 2SPST 3804005000- Brand Name: LS
- Part Number: 3804005000
- Check Stock
-
$99.00
Add To Favorites ListLS Electric Electronic Motor Protection Relay, Series: GMP Series, 110/220 V Input, 8 to 40 A, 2.2 to 7.5 W, 50/60 Hz, 3 Phase, 500 VDC Insulation Voltage, 100 MOhm Resistance, 2SPST Contact Configuration, 5 A Contact Rating, Pin Terminal, LED Display, Manual, Electrical Reset, -25 to 70 deg C, 87.5 mm Height, 53 mm Width, 78 mm Depth, Metasol Direct Coupling Pin, Red Trip Indicator
| Additional Information | : | Metasol Direct Coupling Pin, Red Trip Indicator |
| Amperage Rating | : | 8 to 40 A |
| Contact Configuration | : | 2SPST |
| Contact Rating | : | 5 A |
| Depth | : | 78 mm |
| Display Type | : | LED |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 87.5 mm |
| Input Voltage | : | 110/220 V |
| Insulation Voltage | : | 500 VDC |
| Phase | : | 3 ph |
| Power Rating | : | 2.2 to 7.5 W |
| Reset Type | : | Manual, Electrical |
| Resistance | : | 100 MOhm |
| Series | : | GMP Series |
| Temperature Rating | : | -25 to 70 deg C |
| Terminal Type | : | Pin |
| Width | : | 53 mm |
- Definite/inverse time protection for a variety of ratings
- Ground fault protection model
- LED based display of cause of failure
- MC direct coupling, penetration, and terminal type sharing
- Integrated digital motor protection relay using MCU (microprocessor control unit)
- Applicable to invertor circuits
- Saves the recent cause of failure
- Shares the terminal contact and penetration-type
- Perfect connection with LS digital contactor Metasol MC
- Various installation methods
- Wide current control range
- Acquired and S-Mark (safety certification), first in the industry
- Remarkable noise reduction
- Inverse time characteristic for motor protection
