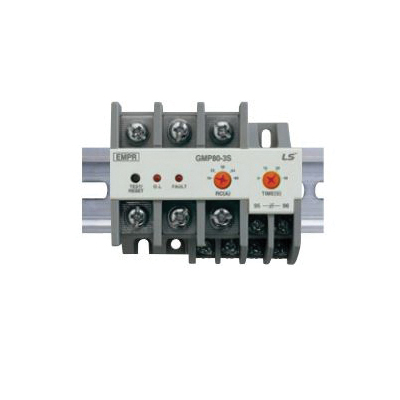

LS Electric 3805000500 Electronic Motor Protection Relay
LS GMP Series 3805000500 Electronic Motor Protection Relay, 16 to 80 A, 2SPST
LS GMP Series 3805000500 Electronic Motor Protection Relay, 16 to 80 A, 2SPST 3805000500- Brand Name: LS
- Part Number: 3805000500
- Check Stock
-
$139.00
Add To Favorites ListLS Electric Electronic Motor Protection Relay, Series: GMP Series, 110/220 V Input, 16 to 80 A, 4 to 18.5 W, 50/60 Hz, 3 Phase, 500 VDC Insulation Voltage, 100 MOhm Resistance, 2SPST Contact Configuration, 5 A Contact Rating, Screw Terminal, LED Display, Manual, Electrical Reset, -25 to 70 deg C, 97.4 mm Height, 89 mm Width, 97.4 mm Depth, Red/Green Trip Indicator
| Additional Information | : | Red/Green Trip Indicator |
| Amperage Rating | : | 16 to 80 A |
| Contact Configuration | : | 2SPST |
| Contact Rating | : | 5 A |
| Depth | : | 97.4 mm |
| Display Type | : | LED |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 97.4 mm |
| Input Voltage | : | 110/220 V |
| Insulation Voltage | : | 500 VDC |
| Phase | : | 3 ph |
| Power Rating | : | 4 to 18.5 W |
| Reset Type | : | Manual, Electrical |
| Resistance | : | 100 MOhm |
| Series | : | GMP Series |
| Temperature Rating | : | -25 to 70 deg C |
| Terminal Type | : | Screw |
| Width | : | 89 mm |
- Definite/inverse time protection for a variety of ratings
- Ground fault protection model
- LED based display of cause of failure
- MC direct coupling, penetration, and terminal type sharing
- Integrated digital motor protection relay using MCU (microprocessor control unit)
- Applicable to invertor circuits
- Saves the recent cause of failure
- Shares the terminal contact and penetration-type
- Perfect connection with LS digital contactor Metasol MC
- Various installation methods
- Wide current control range
- Acquired and S-Mark (safety certification), first in the industry
- Remarkable noise reduction
- Inverse time characteristic for motor protection
