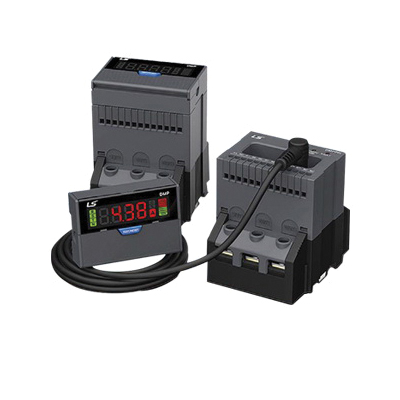

LS Electric 3813005500 Digital Motor Protection Relay

LS DMPi Series 3813005500 Digital Motor Protection Relay, 260 V Input, 0.5 to 6 A, 2 W

LS DMPi Series 3813005500 Digital Motor Protection Relay, 260 V Input, 0.5 to 6 A, 2 W 3813005500

LS Electric Digital Motor Protection Relay, Series: DMPi Series, 260 V Input, 0.5 to 6 A, 2 W, 50/60 Hz, 500 VDC Insulation Voltage, 3SPST Contact Configuration, DIN Rail, Screw Mounting, -20 to 70 deg C, 108.1 mm Height, 89 mm Width, 94 mm Depth, 4 Digit, 7-Segment Display

Additional Information      :      4 Digit, 7-Segment Display
Amperage Rating      :      0.5 to 6 A
Contact Configuration      :      3SPST
Depth      :      94 mm
Frequency Rating      :      50/60 Hz
Height      :      108.1 mm
Input Voltage      :      260 V
Insulation Voltage      :      500 VDC
Mounting Type      :      DIN Rail, Screw
Power Rating      :      2 W
Series      :      DMPi Series
Temperature Rating      :      -20 to 70 deg C
Width      :      89 mm
  • Definite/inverse time option and various protection methods
  • Storage of causes of failure
  • Separated display part using cables
  • MODBUS communication, 4 to 20 mA DC output
  • Operating time displayed for each model
  • Applicable to invertor circuits
  • A function to store the causes of failure/fault exists
  • Up to five motor failure events may be saved in the system so that failure history may be easily identified
  • Communication function
  • A wide range of reset functions
  • Date information display
  • Password setting
  • Total operating time and operating time setting
  • Terminal/penetrated types are shared for application in various installation environments
  • Thermal inverse time, inverse time, and definite time modes
  • Various protection elements and additional functions
  • High reliability
  • Inverse time characteristic for motor protection
