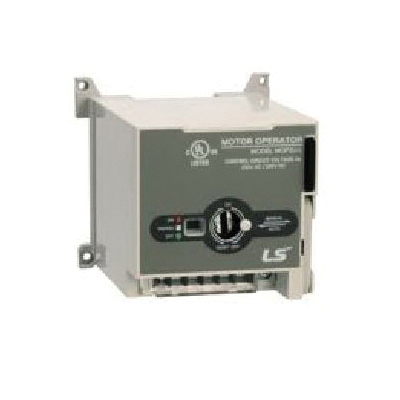

LS Electric 83471172205 Motor Operator

LS Susol Series 83471172205 Motor Operator, 110 VAC/110 VDC/230 VAC/220 VDC, 14 W

LS Susol Series 83471172205 Motor Operator, 110 VAC/110 VDC/230 VAC/220 VDC, 14 W 83471172205

Motor operators can be operated manually. The motor drives a mechanism which switches UTS toggle handle to the "ON" and "OFF/RESET" positions. The motor operator is an essential device for constructing a remote operated automatic source-changeover system to ensure a continuous supply of electrical power at following certain installations - commercial sector - hospital, tall building, bank, insurance companies, shopping centers and industry - ships, assembly lines at plant, military sites, port and railway installation.
LS Electric Motor Operator, Series: Susol Series, <= 0.5 A, 110 VAC/110 VDC/230 VAC/220 VDC, 14 W, 2, 3 Poles, For Use With: UTS150/250 Molded Case Circuit Breaker, 25000 Mechanical Service Life, 120 Operations/hr, Lock Function, 350 ms Closing Response Time, 230 ms Opening Response Time

Additional Information      :      25000 Mechanical Service Life, 120 Operations/hr, Lock Function, 350 ms Closing Response Time, 230 ms Opening Response Time
Amperage Rating      :      <= 0.5 A
Number of Poles      :      2, 3
Power Rating      :      14 W
Series      :      Susol Series
Suitable For Use With      :      UTS150/250 Molded Case Circuit Breaker
Voltage Rating      :      110 VAC/110 VDC/230 VAC/220 VDC
  • The manual actuator handle is located on the front of the cover
  • Manual or automatic operation can be selected
  • Applicable to two, three pole breakers
  • Door can be locked closed due to interlocking features of the handle operator
  • Operating mechanism has one type - cable operating type with sliding mechanism
