MIDLAND INDUSTRIES 10291B 10291B

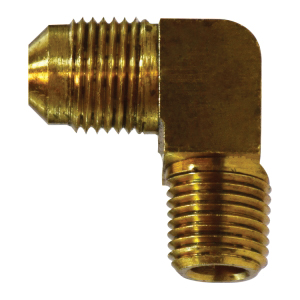

MIDLAND INDUSTRIES 10291B 90 Deg Barstock Elbow, 5/16 in Male Flared x 1/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10291B 90 deg Barstock Elbow, 5/16 in Male Flared x 1/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10291B 90 deg Barstock Elbow, 5/16 in Male Flared x 1/4 in Male NPTF, Brass 10291B

MIDLAND INDUSTRIES 90 deg Barstock Elbow, 90 deg Elbow Fitting, 5/16 in Connection Size 1, Male Flared Connection Type 1, 1/4 in Connection Size 2, Male NPTF Connection Type 2, Male Flared|MNPT Connection, Brass, Brass Material Construction, 1/2-20 x 1/4-18 Thread, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1200 psi Pressure, -65 to 250 deg F, 0.62 in Body Size, 0.91 x 1.04 in Center to End Size, 0.032 in THK Wall Tube, 0.08 lb Weight Additional Information

Additional Information      :      0.62 in Body Size, 0.91 x 1.04 in Center to End Size, 0.032 in THK Wall Tube, 0.08 lb Weight
Connection Size 1      :      5/16 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Male Flared
Connection Type 2      :      Male NPTF
Connection Type      :      Male Flared|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      1200 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1/2-20 x 1/4-18
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_10300B_Full_Engineering_Drawing.pdf
