MIDLAND INDUSTRIES 10307 10307

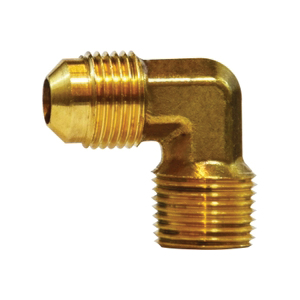

MIDLAND INDUSTRIES 10307 90 Deg Elbow, 7/8 in Male Flared x 3/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10307 90 deg Elbow, 7/8 in Male Flared x 3/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10307 90 deg Elbow, 7/8 in Male Flared x 3/4 in Male NPTF, Brass 10307

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 7/8 in Connection Size 1, Male Flared Connection Type 1, 3/4 in Connection Size 2, Male NPTF Connection Type 2, Male Flared|MNPT Connection, Brass, Forged Brass Material Construction, 1-1/4-12 x 3/4-14 Thread, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 450 psi Pressure, -65 to 250 deg F, 1 in Body Size, 1.75 x 1.68 in Center to End Size, 0.035 in THK Wall Tube, 0.44 lb Weight Additional Information

Additional Information      :      1 in Body Size, 1.75 x 1.68 in Center to End Size, 0.035 in THK Wall Tube, 0.44 lb Weight
Connection Size 1      :      7/8 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Male Flared
Connection Type 2      :      Male NPTF
Connection Type      :      Male Flared|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      450 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1-1/4-12 x 3/4-14
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_10309_Full_Engineering_Drawing.pdf
