MIDLAND INDUSTRIES 10308 10308

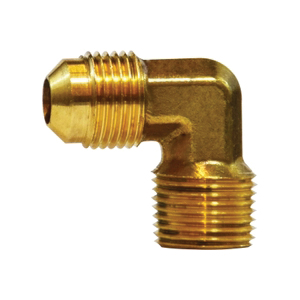

MIDLAND INDUSTRIES 10308 90 Deg Elbow, 1 in Male Flared x 3/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10308 90 deg Elbow, 1 in Male Flared x 3/4 in Male NPTF, Brass

MIDLAND INDUSTRIES 10308 90 deg Elbow, 1 in Male Flared x 3/4 in Male NPTF, Brass 10308

MIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 1 in, Connection Type 1: Male Flared, Connection Size 2: 3/4 in, Connection Type 2: Male NPTF, Forged Brass, 1-3/8-12 x 3/4-14 Thread, For Use With: Copper, Brass, Aluminum, Steel Hydraulic Tubing, -65 to 250 deg F, Additional Information: 1.31 in Body Size, 1.94 x 1.69 in Tube Wall, 0.750 lb Weight

Additional Information      :      1.31 in Body Size, 1.94 x 1.69 in Tube Wall, 0.750 lb Weight
Connection Size 1      :      1 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Male Flared
Connection Type 2      :      Male NPTF
Connection Type      :      Male Flared|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Copper, Brass, Aluminum, Steel Hydraulic Tubing
Material Construction      :      Forged Brass
Material      :      Brass
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1-3/8-12 x 3/4-14
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_10309_Full_Engineering_Drawing.pdf
