MIDLAND INDUSTRIES 10309 10309

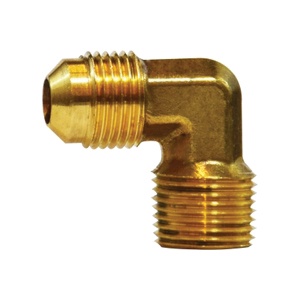

MIDLAND INDUSTRIES 10309 90 Deg Elbow, 1 in Male Flared x 1 in Male NPTF, Brass

MIDLAND INDUSTRIES 10309 90 deg Elbow, 1 in Male Flared x 1 in Male NPTF, Brass

MIDLAND INDUSTRIES 10309 90 deg Elbow, 1 in Male Flared x 1 in Male NPTF, Brass 10309

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 1 in Connection Size 1, Male Flared Connection Type 1, 1 in Connection Size 2, Male NPTF Connection Type 2, Male Flared|MNPT Connection, Brass, Forged Brass Material Construction, 1-3/8-12 x 1-11-1/2 Thread, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 1-1/4 in Body Size, 1.94 x 1.75 in THK Wall Tube, 0.78 lb Weight Additional Information

Additional Information      :      1-1/4 in Body Size, 1.94 x 1.75 in THK Wall Tube, 0.78 lb Weight
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Male Flared
Connection Type 2      :      Male NPTF
Connection Type      :      Male Flared|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1-3/8-12 x 1-11-1/2
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_10309_Full_Engineering_Drawing.pdf
