MIDLAND INDUSTRIES 10343 10343

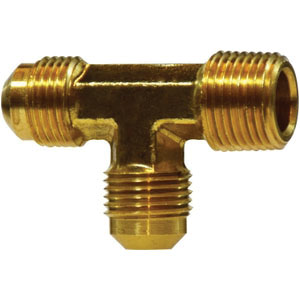

MIDLAND INDUSTRIES 10343 Run Tee, 3/16 in SAE 45 Deg Male Flared x 1/8 in Male NPTF x 3/16 in SAE 45 Deg Male Flared

MIDLAND INDUSTRIES 10343 Run Tee, 3/16 in SAE 45 deg Male Flared x 1/8 in Male NPTF x 3/16 in SAE 45 deg Male Flared

MIDLAND INDUSTRIES 10343 Run Tee, 3/16 in SAE 45 deg Male Flared x 1/8 in Male NPTF x 3/16 in SAE 45 deg Male Flared 10343

MIDLAND INDUSTRIES Run Tee, Tee Fitting, 3/16 in Connection Size 1, SAE 45 deg Male Flared Connection Type 1, 1/8 in Connection Size 2, Male NPTF Connection Type 2, 3/16 in Connection Size 3, SAE 45 deg Male Flared Connection Type 3, Male SAE Flared|MNPT|Male SAE Flared Connection, Brass, Brass Material Construction, 3/8-24 x 1/8-27 Thread, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1-1/2 in L Dimensions, 1900 psi Pressure, -65 to 250 deg F, 0.37 in Body Size, 3/4 in Center to End Size, 0.03 in THK Wall Tube, 0.05 lb Weight Additional Information

Additional Information      :      0.37 in Body Size, 3/4 in Center to End Size, 0.03 in THK Wall Tube, 0.05 lb Weight
Connection Size 1      :      3/16 in
Connection Size 2      :      1/8 in
Connection Size 3      :      3/16 in
Connection Type 1      :      SAE 45 deg Male Flared
Connection Type 2      :      Male NPTF
Connection Type 3      :      SAE 45 deg Male Flared
Connection Type      :      Male SAE Flared|MNPT|Male SAE Flared
Dimensions      :      1-1/2 in L
Fitting Type      :      Tee
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      1900 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      3/8-24 x 1/8-27
