MIDLAND INDUSTRIES 10484L 10484L

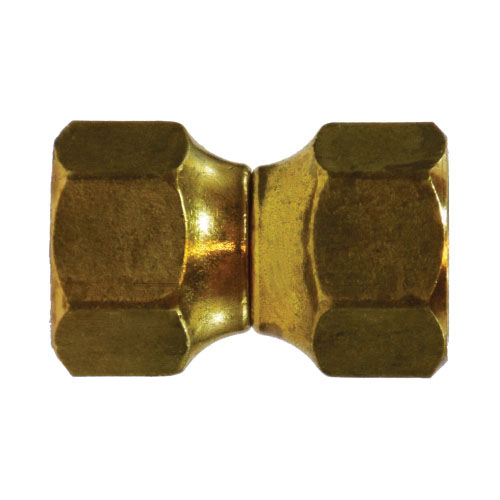

MIDLAND INDUSTRIES 10484L Light Pattern Swivel Union, 1/2 in SAE 45 Deg Female Flared x 1/2 in SAE 45 Deg Female Flared

MIDLAND INDUSTRIES 10484L Light Pattern Swivel Union, 1/2 in SAE 45 deg Female Flared x 1/2 in SAE 45 deg Female Flared

MIDLAND INDUSTRIES 10484L Light Pattern Swivel Union, 1/2 in SAE 45 deg Female Flared x 1/2 in SAE 45 deg Female Flared 10484L

MIDLAND INDUSTRIES Light Pattern Swivel Union, Union Fitting, 1/2 in Connection Size 1, SAE 45 deg Female Flared Connection Type 1, 1/2 in Connection Size 2, SAE 45 deg Female Flared Connection Type 2, Female SAE Flared|Female SAE Flared Connection, Brass, Forged Brass Material Construction, 3/4-16 Thread, 0.92 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1.64 in L Dimensions, 750 psi Pressure, -65 to 250 deg F, 0.032 in THK Wall Tube, 0.14 lb Weight Additional Information

Additional Information      :      0.032 in THK Wall Tube, 0.14 lb Weight
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      SAE 45 deg Female Flared
Connection Type 2      :      SAE 45 deg Female Flared
Connection Type      :      Female SAE Flared|Female SAE Flared
Dimensions      :      1.64 in L
Fitting Type      :      Union
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Hex Size      :      0.92 in
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      750 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      3/4-16
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/AMC_0003904P65_Catalog.pdf
