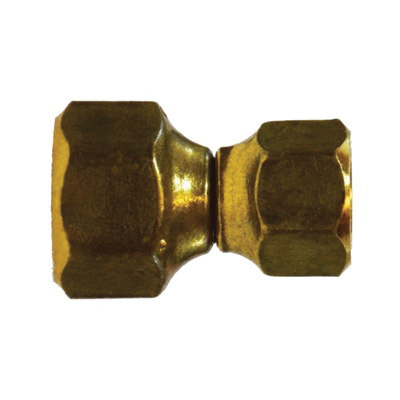

MIDLAND INDUSTRIES 10488 Reducing Swivel Union, 1/2 in SAE 45 deg Female Flared x 3/8 in SAE 45 deg Female Flared, Brass
MIDLAND INDUSTRIES 10488 Reducing Swivel Union, 1/2 in SAE 45 deg Female Flared x 3/8 in SAE 45 deg Female Flared, Brass 10488MIDLAND INDUSTRIES Reducing Swivel Union, Union Fitting, 1/2 in Connection Size 1, SAE 45 deg Female Flared Connection Type 1, 3/8 in Connection Size 2, SAE 45 deg Female Flared Connection Type 2, Female SAE Flared|Female SAE Flared Connection, Brass, Brass Material Construction, 3/4-16 x 5/8-18 Thread, 0.94 x 0.81 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1.54 in L Dimensions, 750 psi Pressure, -65 to 250 deg F, 0.032 in THK Wall Tube, 0.12 lb Weight Additional Information
| Additional Information | : | 0.032 in THK Wall Tube, 0.12 lb Weight |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | SAE 45 deg Female Flared |
| Connection Type 2 | : | SAE 45 deg Female Flared |
| Connection Type | : | Female SAE Flared|Female SAE Flared |
| Dimensions | : | 1.54 in L |
| Fitting Type | : | Union |
| For Use With | : | Aluminum, Brass, Copper and Steel Hydraulic Tubings |
| Hex Size | : | 0.94 x 0.81 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 750 psi |
| Temperature Rating | : | -65 to 250 deg F |
| Thread Size | : | 3/4-16 x 5/8-18 |
