MIDLAND INDUSTRIES 10493 10493

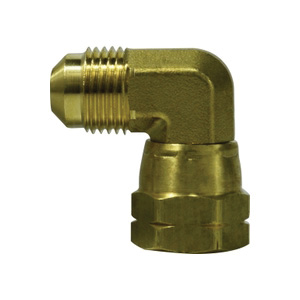

MIDLAND INDUSTRIES 10493 Swivel Elbow, 1/4 in SAE 45 Deg Male Flared x 1/4 in SAE 45 Deg Female Flared, Brass

MIDLAND INDUSTRIES 10493 Swivel Elbow, 1/4 in SAE 45 deg Male Flared x 1/4 in SAE 45 deg Female Flared, Brass

MIDLAND INDUSTRIES 10493 Swivel Elbow, 1/4 in SAE 45 deg Male Flared x 1/4 in SAE 45 deg Female Flared, Brass 10493

MIDLAND INDUSTRIES Swivel Elbow, Elbow Fitting, 1/4 in Connection Size 1, SAE 45 deg Male Flared Connection Type 1, 1/4 in Connection Size 2, SAE 45 deg Female Flared Connection Type 2, Male SAE Flared|Female SAE Flared Connection, Brass, Forged Brass Material Construction, 7/16-20 Thread, 0.563 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1400 psi Pressure, -65 to 250 deg F, 0.03 in THK Wall Tube, 0.93 in Center to Hex End Size, 0.86 in Center to End Size, 0.12 lb Weight Additional Information

Additional Information      :      0.03 in THK Wall Tube, 0.93 in Center to Hex End Size, 0.86 in Center to End Size, 0.12 lb Weight
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      SAE 45 deg Male Flared
Connection Type 2      :      SAE 45 deg Female Flared
Connection Type      :      Male SAE Flared|Female SAE Flared
Fitting Type      :      Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Hex Size      :      0.563 in
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      1400 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-20
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/AMC_0003904P65_Catalog.pdf
