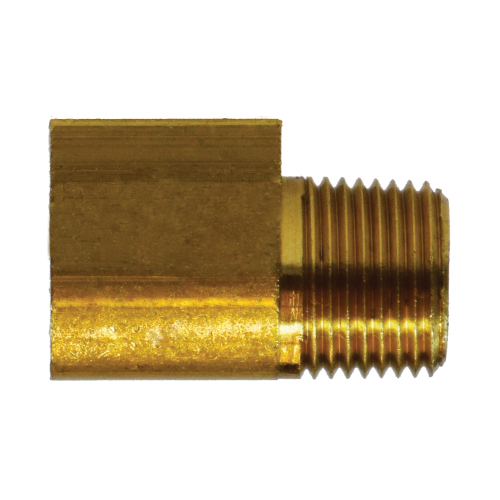

MIDLAND INDUSTRIES 12054 90 Deg Elbow with 0.062 in Restricted Pipe End, 1/4 in Female Inverted Flared x 1/8 in MNPTF

MIDLAND INDUSTRIES 12054 90 deg Elbow with 0.062 in Restricted Pipe End, 1/4 in Female Inverted Flared x 1/8 in MNPTF

MIDLAND INDUSTRIES 12054 90 deg Elbow with 0.062 in Restricted Pipe End, 1/4 in Female Inverted Flared x 1/8 in MNPTF 12054

MIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 1/4 in, Connection Type 1: Female Inverted Flared, Connection Size 2: 1/8 in, Connection Type 2: MNPTF, Brass, 7/16-24 x 1/8-27 Thread, For Use With: Aluminum, Brass, Copper, and Steel Hydraulic Tubing, 1400 psi, -65 to 250 deg F, Additional Information: 0.33 x 0.65 in Center to End, 0.03 in Tube Wall, 0.040 lb Weight

Additional Information      :      0.33 x 0.65 in Center to End, 0.03 in Tube Wall, 0.040 lb Weight
Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Female Inverted Flared
Connection Type 2      :      MNPTF
Connection Type      :      Female Inverted Flared|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper, and Steel Hydraulic Tubing
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      1400 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-24 x 1/8-27
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/AMC_0036104_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_12054_Full_Engineering_Drawing.pdf
