MIDLAND INDUSTRIES 12074 12074

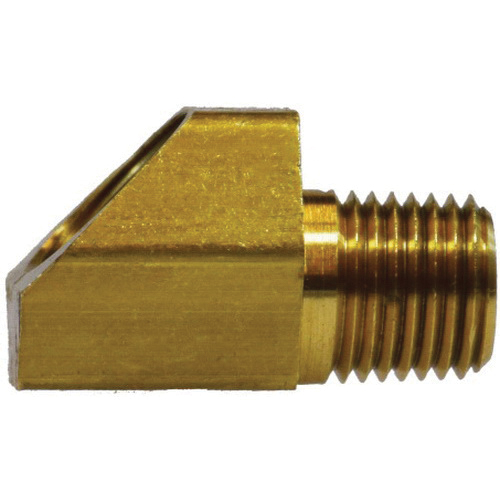

MIDLAND INDUSTRIES 12074 45 Deg Elbow, 5/16 in Female Inverted Flared x 1/8 in MNPTF, Brass

MIDLAND INDUSTRIES 12074 45 deg Elbow, 5/16 in Female Inverted Flared x 1/8 in MNPTF, Brass

MIDLAND INDUSTRIES 12074 45 deg Elbow, 5/16 in Female Inverted Flared x 1/8 in MNPTF, Brass 12074

MIDLAND INDUSTRIES 45 deg Elbow, 45 deg Elbow Fitting, 5/16 in Connection Size 1, Female Inverted Flared Connection Type 1, 1/8 in Connection Size 2, MNPTF Connection Type 2, Female Inverted Flared|MNPT Connection, Brass, Brass Material Construction, 1/2-20 x 1/8-27 Thread, 0.62 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 1200 psi Pressure, -65 to 250 deg F, 0.36 x 0.56 in Center to End Size, 0.032 in THK Wall Tube, 0.06 lb Weight Additional Information

Additional Information      :      0.36 x 0.56 in Center to End Size, 0.032 in THK Wall Tube, 0.06 lb Weight
Connection Size 1      :      5/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Female Inverted Flared
Connection Type 2      :      MNPTF
Connection Type      :      Female Inverted Flared|MNPT
Fitting Type      :      45 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Hex Size      :      0.62 in
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      1200 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1/2-20 x 1/8-27
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_12072_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_12074_Full_Engineering_Drawing.pdf
