MIDLAND INDUSTRIES 12100 12100

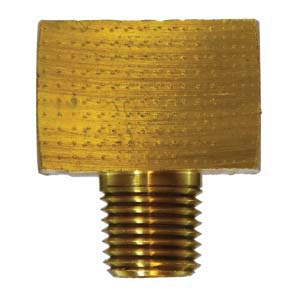

MIDLAND INDUSTRIES 12100 Branch Tee, 3/16 in Inverted Flared x 3/16 in Inverted Flared x 1/8 in MNPTF, Brass

MIDLAND INDUSTRIES 12100 Branch Tee, 3/16 in Inverted Flared x 3/16 in Inverted Flared x 1/8 in MNPTF, Brass

MIDLAND INDUSTRIES 12100 Branch Tee, 3/16 in Inverted Flared x 3/16 in Inverted Flared x 1/8 in MNPTF, Brass 12100

MIDLAND INDUSTRIES Branch Tee, Tee Fitting, 3/16 in Connection Size 1, Inverted Flared Connection Type 1, 3/16 in Connection Size 2, Inverted Flared Connection Type 2, 1/8 in Connection Size 3, MNPTF Connection Type 3, Inverted Flared|Inverted Flared|MNPT Connection, Brass, Brass Material Construction, 3/8-24 x 1/8-27 Thread, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, 0.82 in L x 0.47 in W Dimensions, 1900 psi Pressure, -65 to 250 deg F, 0.6 in Center to End Size, 0.03 in THK Wall Tube, 0.04 lb Weight Additional Information

Additional Information      :      0.6 in Center to End Size, 0.03 in THK Wall Tube, 0.04 lb Weight
Connection Size 1      :      3/16 in
Connection Size 2      :      3/16 in
Connection Size 3      :      1/8 in
Connection Type 1      :      Inverted Flared
Connection Type 2      :      Inverted Flared
Connection Type 3      :      MNPTF
Connection Type      :      Inverted Flared|Inverted Flared|MNPT
Dimensions      :      0.82 in L x 0.47 in W
Fitting Type      :      Tee
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      1900 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      3/8-24 x 1/8-27
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_12100_Full_Engineering_Drawing.pdf
