MIDLAND INDUSTRIES 28722F 28722F

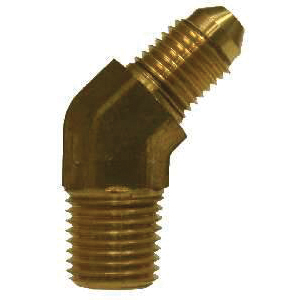

MIDLAND INDUSTRIES 28722F 45 Deg Elbow, 7/16 in Male JIC x 1/8 in MIP, Brass

MIDLAND INDUSTRIES 28722F 45 deg Elbow, 7/16 in Male JIC x 1/8 in MIP, Brass

MIDLAND INDUSTRIES 28722F 45 deg Elbow, 7/16 in Male JIC x 1/8 in MIP, Brass 28722F

MIDLAND INDUSTRIES 45 deg Elbow, Connection Size 1: 7/16 in, Connection Type 1: Male JIC, Connection Size 2: 1/8 in, Connection Type 2: MIP, 1/4 in Tube, Forged Brass, 7/16-20 x 1/8-27 Thread, 4367 psi, For Use With: Copper, Brass, Aluminum, Steel Hydraulic Tubing That Can Be Flared, -65 to 250 deg F, Additional Information: 0.72 x 0.64 in Center to End, 0.050 lb Weight

Additional Information      :      0.72 x 0.64 in Center to End, 0.050 lb Weight
Connection Size 1      :      7/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      45 deg Elbow
For Use With      :      Copper, Brass, Aluminum, Steel Hydraulic Tubing That Can Be Flared
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      4367 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-20 x 1/8-27
Tube OD      :      1/4 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_28722F_Full_Engineering_Drawing.pdf
