MIDLAND INDUSTRIES 28724F 28724F

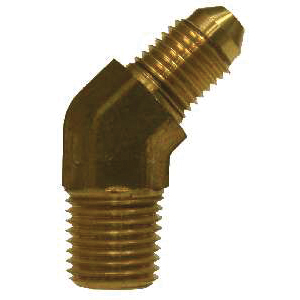

MIDLAND INDUSTRIES 28724F 45 Deg Elbow, 7/16 in Male 37 deg JIC x 1/4 in MIP, Brass

MIDLAND INDUSTRIES 28724F 45 deg Elbow, 7/16 in Male 37 deg JIC x 1/4 in MIP, Brass

MIDLAND INDUSTRIES 28724F 45 deg Elbow, 7/16 in Male 37 deg JIC x 1/4 in MIP, Brass 28724F

MIDLAND INDUSTRIES 45 deg Elbow, 45 deg Elbow Fitting, 7/16 in Connection Size 1, Male 37 deg JIC Connection Type 1, 1/4 in Connection Size 2, MIP Connection Type 2, Male JIC|MIP Connection, Brass, Forged Brass Material Construction, 7/16-20 x 1/4-18 Thread, 1/4 in Tube OD, 3750 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 0.81 x 0.84 in Center to End Size, 0.07 lb Weight Additional Information

Additional Information      :      0.81 x 0.84 in Center to End Size, 0.07 lb Weight
Connection Size 1      :      7/16 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Male 37 deg JIC
Connection Type 2      :      MIP
Connection Type      :      Male JIC|MIP
Fitting Type      :      45 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      3750 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-20 x 1/4-18
Tube OD      :      1/4 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28724F_Full_Engineering_Drawing.pdf
