MIDLAND INDUSTRIES 28728F 28728F

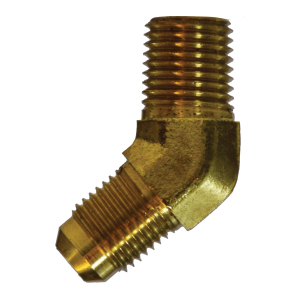

MIDLAND INDUSTRIES 28728F 45 Deg Elbow, 1/2 in Male JIC x 1/4 in MIP, Brass

MIDLAND INDUSTRIES 28728F 45 deg Elbow, 1/2 in Male JIC x 1/4 in MIP, Brass

MIDLAND INDUSTRIES 28728F 45 deg Elbow, 1/2 in Male JIC x 1/4 in MIP, Brass 28728F

MIDLAND INDUSTRIES 45 deg Elbow, Connection Size 1: 1/2 in, Connection Type 1: Male JIC, Connection Size 2: 1/4 in, Connection Type 2: MIP, 5/16 in Tube, Forged Brass, 1/2-20 x 1/4-18 Thread, For Use With: Copper, Brass, Aluminum, Steel Hydraulic Tubing That Can Be Flared, -65 to 250 deg F, Additional Information: 0.81 x 0.84 in Center to End, 0.080 lb Weight

Additional Information      :      0.81 x 0.84 in Center to End, 0.080 lb Weight
Connection Size 1      :      1/2 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      45 deg Elbow
For Use With      :      Copper, Brass, Aluminum, Steel Hydraulic Tubing That Can Be Flared
Material Construction      :      Forged Brass
Material      :      Brass
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1/2-20 x 1/4-18
Tube OD      :      5/16 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_28728F_Full_Engineering_Drawing.pdf
