MIDLAND INDUSTRIES 28731F 28731F

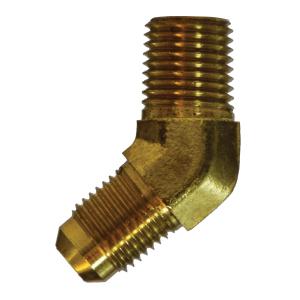

MIDLAND INDUSTRIES 28731F 45 Deg Elbow, 9/16 in Male JIC x 1/4 in MNPT, Brass

MIDLAND INDUSTRIES 28731F 45 deg Elbow, 9/16 in Male JIC x 1/4 in MNPT, Brass

MIDLAND INDUSTRIES 28731F 45 deg Elbow, 9/16 in Male JIC x 1/4 in MNPT, Brass 28731F

MIDLAND INDUSTRIES 45 deg Elbow, 45 deg Elbow Fitting, 9/16 in Connection Size 1, Male JIC Connection Type 1, 1/4 in Connection Size 2, MNPT Connection Type 2, Male JIC|MNPT Connection, Brass, Forged Brass Material Construction, 9/16-18 x 1/4-18 Thread, 3/8 in Tube OD, 3128 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 0.83 x 0.86 in Center to End Size Additional Information

Additional Information      :      0.83 x 0.86 in Center to End Size
Connection Size 1      :      9/16 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      45 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      3128 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      9/16-18 x 1/4-18
Tube OD      :      3/8 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28731F_Full_Engineering_Drawing.pdf
