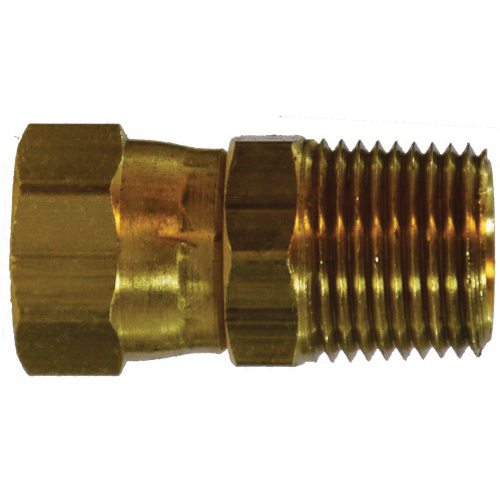

MIDLAND INDUSTRIES 28752 Straight Swivel Adapter, 1/4 in Female 37 deg JIC Flared x 1/4 in MNPT, Brass

MIDLAND INDUSTRIES 28752 Straight Swivel Adapter, 1/4 in Female 37 deg JIC Flared x 1/4 in MNPT, Brass

MIDLAND INDUSTRIES 28752 Straight Swivel Adapter, 1/4 in Female 37 deg JIC Flared x 1/4 in MNPT, Brass 28752

MIDLAND INDUSTRIES Straight Swivel Adapter, Connection Size 1: 1/4 in, Connection Type 1: Female 37 deg JIC Flared, Connection Size 2: 1/4 in, Connection Type 2: MNPT, Brass, 7/16-20 Thread, 0.563 in Hex, 1.389 in L, Maximum Operating Pressure: 3250 psi

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Female 37 deg JIC Flared
Connection Type 2      :      MNPT
Connection Type      :      Female JIC|MNPT
Dimensions      :      1.389 in L
Fitting Type      :      Adapter
Hex Size      :      0.563 in
Material Construction      :      Brass
Material      :      Brass
Maximum Operating Pressure      :      3250 psi
Thread Size      :      7/16-20
