MIDLAND INDUSTRIES 28760F 28760F

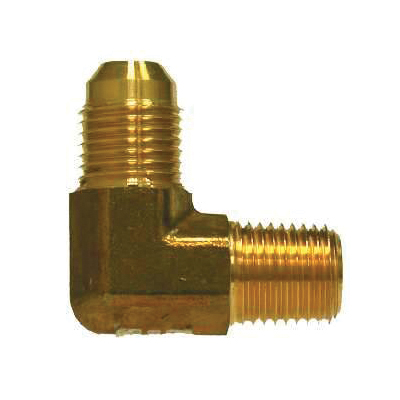

MIDLAND INDUSTRIES 28760F 90 Deg Elbow, 7/16 in Male JIC x 1/8 in MNPT, Brass

MIDLAND INDUSTRIES 28760F 90 deg Elbow, 7/16 in Male JIC x 1/8 in MNPT, Brass

MIDLAND INDUSTRIES 28760F 90 deg Elbow, 7/16 in Male JIC x 1/8 in MNPT, Brass 28760F

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 7/16 in Connection Size 1, Male JIC Connection Type 1, 1/8 in Connection Size 2, MNPT Connection Type 2, Male JIC|MNPT Connection, Brass, Forged Brass Material Construction, 7/16-20 x 1/8-27 Thread, 1/4 in Tube OD, 2160 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 0.89 x 0.78 in Center to End Size Additional Information

Additional Information      :      0.89 x 0.78 in Center to End Size
Connection Size 1      :      7/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      2160 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-20 x 1/8-27
Tube OD      :      1/4 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28760F_Full_Engineering_Drawing.pdf
