MIDLAND INDUSTRIES 28768F 28768F

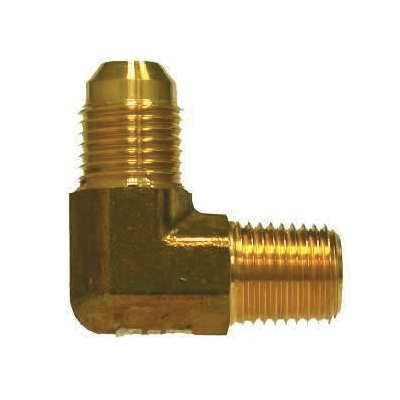

MIDLAND INDUSTRIES 28768F 90 Deg Elbow, 9/16 in Male 37 deg JIC x 1/8 in MIP, Brass

MIDLAND INDUSTRIES 28768F 90 deg Elbow, 9/16 in Male 37 deg JIC x 1/8 in MIP, Brass

MIDLAND INDUSTRIES 28768F 90 deg Elbow, 9/16 in Male 37 deg JIC x 1/8 in MIP, Brass 28768F

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 9/16 in Connection Size 1, Male 37 deg JIC Connection Type 1, 1/8 in Connection Size 2, MIP Connection Type 2, Male JIC|MIP Connection, Brass, Forged Brass Material Construction, 9/16-18 x 1/8-27 Thread, 3/8 in Tube OD, 3128 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 1.06 x 1 in Center to End Size, 0.11 lb Weight Additional Information

Additional Information      :      1.06 x 1 in Center to End Size, 0.11 lb Weight
Connection Size 1      :      9/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Male 37 deg JIC
Connection Type 2      :      MIP
Connection Type      :      Male JIC|MIP
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      3128 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      9/16-18 x 1/8-27
Tube OD      :      3/8 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28768F_Full_Engineering_Drawing.pdf
