MIDLAND INDUSTRIES 28783F 28783F

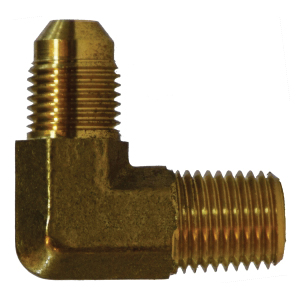

MIDLAND INDUSTRIES 28783F 90 Deg Elbow, 1-1/16 in Male JIC x 3/4 in MNPT, Brass

MIDLAND INDUSTRIES 28783F 90 deg Elbow, 1-1/16 in Male JIC x 3/4 in MNPT, Brass

MIDLAND INDUSTRIES 28783F 90 deg Elbow, 1-1/16 in Male JIC x 3/4 in MNPT, Brass 28783F

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 1-1/16 in Connection Size 1, Male JIC Connection Type 1, 3/4 in Connection Size 2, MNPT Connection Type 2, Male JIC|MNPT Connection, Brass, Forged Brass Material Construction, 1-1/16-12 x 3/4-14 Thread, 3/4 in Tube OD, 1084 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 1.66 x 1.59 in Center to End Size Additional Information

Additional Information      :      1.66 x 1.59 in Center to End Size
Connection Size 1      :      1-1/16 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      1084 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1-1/16-12 x 3/4-14
Tube OD      :      3/4 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28783F_Full_Engineering_Drawing.pdf
