MIDLAND INDUSTRIES 28784F 28784F

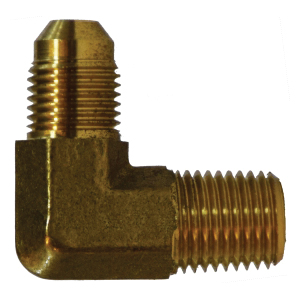

MIDLAND INDUSTRIES 28784F 90 Deg Elbow, 1-5/16 in Male JIC x 3/4 in MNPT, Brass

MIDLAND INDUSTRIES 28784F 90 deg Elbow, 1-5/16 in Male JIC x 3/4 in MNPT, Brass

MIDLAND INDUSTRIES 28784F 90 deg Elbow, 1-5/16 in Male JIC x 3/4 in MNPT, Brass 28784F

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 1-5/16 in Connection Size 1, Male JIC Connection Type 1, 3/4 in Connection Size 2, MNPT Connection Type 2, Male JIC|MNPT Connection, Brass, Forged Brass Material Construction, 1-5/16-12 x 3/4-14 Thread, 1 in Tube OD, 1802 psi Pressure, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F, 1.88 x 1.77 in Center to End Size Additional Information

Additional Information      :      1.88 x 1.77 in Center to End Size
Connection Size 1      :      1-5/16 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Male JIC
Connection Type 2      :      MNPT
Connection Type      :      Male JIC|MNPT
Fitting Type      :      90 deg Elbow
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      1802 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      1-5/16-12 x 3/4-14
Tube OD      :      1 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28705_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28784F_Full_Engineering_Drawing.pdf
