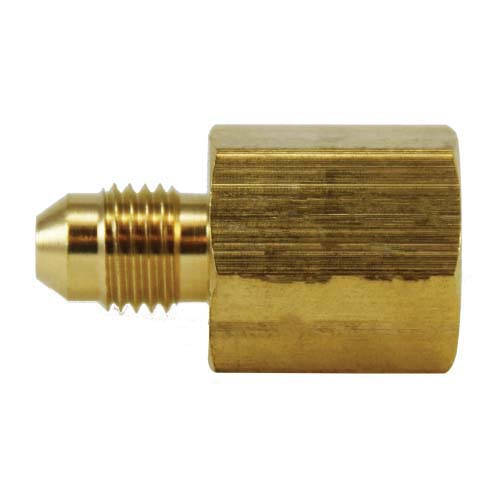

MIDLAND INDUSTRIES 28957 Straight Adapter, 7/16 in Male JIC x 1/8 in FIP, 1.19 in, Brass

MIDLAND INDUSTRIES 28957 Straight Adapter, 7/16 in Male JIC x 1/8 in FIP, 1.19 in, Brass

MIDLAND INDUSTRIES 28957 Straight Adapter, 7/16 in Male JIC x 1/8 in FIP, 1.19 in, Brass 28957

MIDLAND INDUSTRIES Straight Adapter, Adapter Fitting, 7/16 in Connection Size 1, Male JIC Connection Type 1, 1/8 in Connection Size 2, FIP Connection Type 2, Male JIC|FIP Connection, 1.19 in Length, Brass, Brass Material Construction, 7/16-20 x 1/8-27 Thread, 1/4 in Tube OD, 3250 psi Pressure, 0.56 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F

Connection Size 1      :      7/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Male JIC
Connection Type 2      :      FIP
Connection Type      :      Male JIC|FIP
Fitting Type      :      Adapter
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Hex Size      :      0.56 in
Length      :      1.19 in
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      3250 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      7/16-20 x 1/8-27
Tube OD      :      1/4 in
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28957_Full_Engineering_Drawing.pdf
