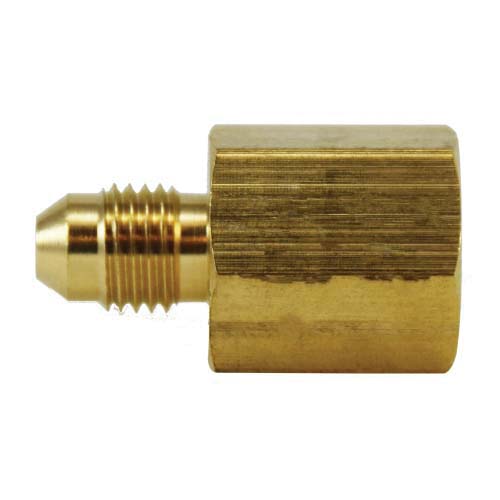

MIDLAND INDUSTRIES 28960 Straight Adapter, 9/16 in Male JIC x 3/8 in FIP, 1.4 in, Brass

MIDLAND INDUSTRIES 28960 Straight Adapter, 9/16 in Male JIC x 3/8 in FIP, 1.4 in, Brass

MIDLAND INDUSTRIES 28960 Straight Adapter, 9/16 in Male JIC x 3/8 in FIP, 1.4 in, Brass 28960

MIDLAND INDUSTRIES Straight Adapter, Adapter Fitting, 9/16 in Connection Size 1, Male JIC Connection Type 1, 3/8 in Connection Size 2, FIP Connection Type 2, Male JIC|FIP Connection, 1.4 in Length, Brass, Brass Material Construction, 9/16-18 x 3/8-18 Thread, 3/8 in Tube OD, 3250 psi Pressure, 0.88 in Hex, For Use With: Aluminum, Brass, Copper and Steel Hydraulic Tubings, -65 to 250 deg F

Connection Size 1      :      9/16 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Male JIC
Connection Type 2      :      FIP
Connection Type      :      Male JIC|FIP
Fitting Type      :      Adapter
For Use With      :      Aluminum, Brass, Copper and Steel Hydraulic Tubings
Hex Size      :      0.88 in
Length      :      1.4 in
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      3250 psi
Temperature Rating      :      -65 to 250 deg F
Thread Size      :      9/16-18 x 3/8-18
Tube OD      :      3/8 in
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_28960_Full_Engineering_Drawing.pdf
