MIDLAND INDUSTRIES 30427 30427

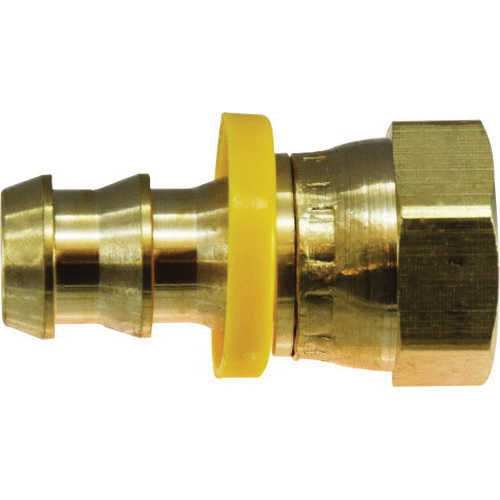

MIDLAND INDUSTRIES 30427 Connector, 3/8 in Push-On Hose Barb x 5/16 in Female SAE 45 Deg/37 deg JIC Swivel, Brass

MIDLAND INDUSTRIES 30427 Connector, 3/8 in Push-On Hose Barb x 5/16 in Female SAE 45 deg/37 deg JIC Swivel, Brass

MIDLAND INDUSTRIES 30427 Connector, 3/8 in Push-On Hose Barb x 5/16 in Female SAE 45 deg/37 deg JIC Swivel, Brass 30427

MIDLAND INDUSTRIES Connector, Connector Fitting, 3/8 in Connection Size 1, Push-On Hose Barb Connection Type 1, 5/16 in Connection Size 2, Female SAE 45 deg/37 deg JIC Swivel Connection Type 2, Barbed|Female JIC Swivel Connection, Brass, Brass Material Construction, 7/8-14 Thread, 1 in Hex, 2.33 in L Dimensions, 150 psi Maximum Operating, 0.06 lb Weight Additional Information

Additional Information      :      0.06 lb Weight
Bearing Design      :      Inner Race Only
Cage Material      :      No Cage
Connection Size 1      :      3/8 in
Connection Size 2      :      5/16 in
Connection Type 1      :      Push-On Hose Barb
Connection Type 2      :      Female SAE 45 deg/37 deg JIC Swivel
Connection Type      :      Barbed|Female JIC Swivel
Dimensions      :      2.33 in L
Dynamic Load Capacity      :      Standard
Filling Slot      :      No
Fitting Type      :      Connector
Hex Size      :      1 in
Inside Diameter      :      6.9375 In
Internal Clearance      :      Standard
Material Construction      :      Brass
Material      :      Brass
Maximum Operating Pressure      :      150 psi
Number of Rows      :      1
Outside Diameter      :      8.464 In
Precision Class      :      ABEC-1 (Standard)
Precision Ground      :      Yes
Race Material      :      Through Hardened Steel
Seal Type      :      None
Static Load Capacity      :      Standard
Thread Size      :      7/8-14
Width      :      6.5 In
  • pdfCatalog https://www.eindustrialsolutions.com//ASSETS/DOCUMENTS/ITEMS/EN/scheerer_bearing_catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_30427_Full_Engineering_Drawing.pdf
