MIDLAND INDUSTRIES 32131 32131

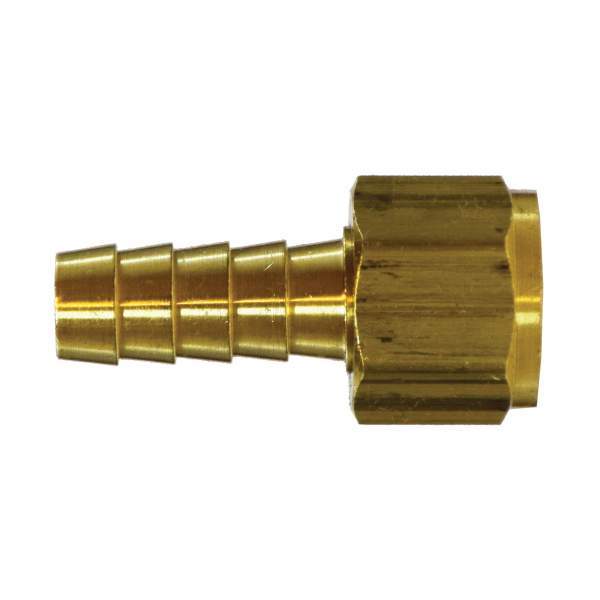

MIDLAND INDUSTRIES 32131 Swivel Adapter with O-Ring Seal Gasket, 1/8 in Hose x 1/8 in Male BSPT, Brass

MIDLAND INDUSTRIES 32131 Swivel Adapter with O-Ring Seal Gasket, 1/8 in Hose x 1/8 in Male BSPT, Brass

MIDLAND INDUSTRIES 32131 Swivel Adapter with O-Ring Seal Gasket, 1/8 in Hose x 1/8 in Male BSPT, Brass 32131

MIDLAND INDUSTRIES Swivel Adapter, Connection Size 1: 1/8 in, Connection Type 1: Hose, Connection Size 2: 1/8 in, Connection Type 2: Male BSPT, Brass, 1/8-27 Thread, 1/2 in Hex, For Use With: Hose Clamp, Similar Type Clamp or A Crimped Ferrules, 0.9 in L, Maximum Operating Pressure: 150 psi, -40 to 160 deg F Operating, Additional Information: 0.46 in Barb Length, 0.020 lb Weight

Additional Information      :      0.46 in Barb Length, 0.020 lb Weight
Connection Size 1      :      1/8 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Hose
Connection Type 2      :      Male BSPT
Connection Type      :      Hose|Male BSP
Dimensions      :      0.9 in L
Fitting Type      :      Adapter
For Use With      :      Hose Clamp, Similar Type Clamp or A Crimped Ferrules
Hex Size      :      1/2 in
Material Construction      :      Brass
Material      :      Brass
Maximum Operating Pressure      :      150 psi
Operating Temperature      :      -40 to 160 deg F
Thread Size      :      1/8-27
