MIDLAND INDUSTRIES 46905I 46905I

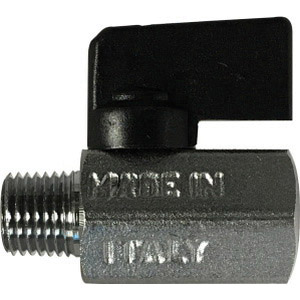

MIDLAND INDUSTRIES 46905I Miniature Ball Valve, 1/2 in Nominal, MPT x FPT, 235 psi Pressure, 32 to 176 deg F

MIDLAND INDUSTRIES 46905I Miniature Ball Valve, 1/2 in Nominal, MPT x FPT, 235 psi Pressure, 32 to 176 deg F

MIDLAND INDUSTRIES 46905I Miniature Ball Valve, 1/2 in Nominal, MPT x FPT, 235 psi Pressure, 32 to 176 deg F 46905I

MIDLAND INDUSTRIES Miniature Ball Valve, 1/2 in Nominal, Connection Type: MPT x FPT, 235 psi, 2.14 in L Inlet to Outlet, 1.26 in Top to Inlet Center, 1/4 Turn Handle Operator, Material Standard: CW517N, CW614N, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Stem Nut/NBR O-Ring/Steel Screw Trim, PTFE Packing, Aluminum Handle, Brass Ball, Lead-Free/Contains Lead: Contains Lead, 32 to 176 deg F, Import, Additional Information: 1/2-14 Thread Size, 0.300 lb Weight

Additional Information      :      1/2-14 Thread Size, 0.300 lb Weight
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      MPT x FPT
Domestic/Import      :      Import
Handle Material      :      Aluminum
Inlet to Outlet Length      :      2.14 in
Lead-Free/Contains Lead      :      Contains Lead
Material Standard      :      CW517N, CW614N
Nominal Size      :      1/2 in
Operator Type      :      1/4 Turn Handle
Packing Material      :      PTFE
Pressure Rating      :      235 psi
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      32 to 176 deg F
Top to Inlet Center      :      1.26 in
Trim Material      :      Steel Stem Nut/NBR O-Ring/Steel Screw
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_46900I_Catalog.pdf
