MIDLAND INDUSTRIES 46925 46925

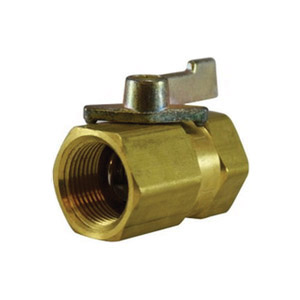

MIDLAND INDUSTRIES 46925 Miniature Ball Valve, 3/4 in Nominal, FIP x FIP, 1000 psig Pressure, Brass Body

MIDLAND INDUSTRIES 46925 Miniature Ball Valve, 3/4 in Nominal, FIP x FIP, 1000 psig Pressure, Brass Body

MIDLAND INDUSTRIES 46925 Miniature Ball Valve, 3/4 in Nominal, FIP x FIP, 1000 psig Pressure, Brass Body 46925

MIDLAND INDUSTRIES Miniature Ball Valve, 3/4 in Nominal, Connection Type: FIP x FIP, 1000 psig, 1/4 Turn Handle Operator, Brass Body, PTFE Seat, Fluoroelastomer Seal, Brass Ball, -40 to 300 deg F, Domestic, Additional Information: 0.460 lb Weight

Additional Information      :      0.460 lb Weight
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FIP x FIP
Domestic/Import      :      Domestic
Nominal Size      :      3/4 in
Operator Type      :      1/4 Turn Handle
Pressure Rating      :      1000 psig
Seal Material      :      Fluoroelastomer
Seat Material      :      PTFE
Temperature Rating      :      -40 to 300 deg F
