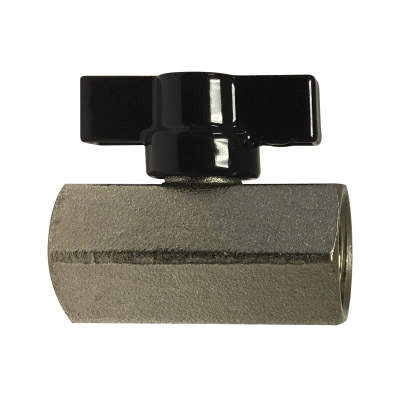

MIDLAND INDUSTRIES 46937LT Mini Ball Valve, 1/2 in Nominal, FNPT x FNPT, 450 psi Pressure, 32 to 176 deg F
MIDLAND INDUSTRIES 46937LT Mini Ball Valve, 1/2 in Nominal, FNPT x FNPT, 450 psi Pressure, 32 to 176 deg F
MIDLAND INDUSTRIES 46937LT Mini Ball Valve, 1/2 in Nominal, FNPT x FNPT, 450 psi Pressure, 32 to 176 deg F 46937LT- Brand Name: MIDLAND INDUSTRIES
- Part Number: 46937LT
- Check Stock
-
$15.00
Add To Favorites ListMIDLAND INDUSTRIES Mini Ball Valve, 1/2 in Nominal, Connection Type: FNPT x FNPT, 450 psi, 1.77 in L Inlet to Outlet, T-Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, FKM Seal, Brass Ring Unit/NBR 80 O-Ring Trim, NBR 80 Handle, Brass Ball, Chrome-Plated, 32 to 176 deg F, 1.77 in L x 1.43 in H, Import, Additional Information: 355 psi at 212 deg F, 142 psi at 356 deg F Pressure, 1/2-14 Thread Size, 0.240 lb Weight
| Additional Information | : | 355 psi at 212 deg F, 142 psi at 356 deg F Pressure, 1/2-14 Thread Size, 0.240 lb Weight |
| Ball Material | : | Brass |
| Body Material | : | Forged Brass |
| Connection Type | : | FNPT x FNPT |
| Dimensions | : | 1.77 in L x 1.43 in H |
| Domestic/Import | : | Import |
| Finish | : | Chrome-Plated |
| Handle Material | : | NBR 80 |
| Inlet to Outlet Length | : | 1.77 in |
| Nominal Size | : | 1/2 in |
| Operator Type | : | T-Handle |
| Pressure Rating | : | 450 psi |
| Seal Material | : | FKM |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 32 to 176 deg F |
| Trim Material | : | Brass Ring Unit/NBR 80 O-Ring |
