MIDLAND INDUSTRIES 46956F 46956F

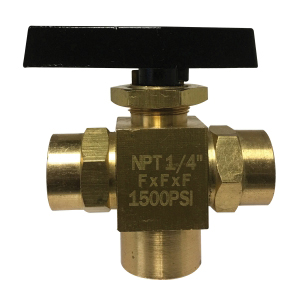

MIDLAND INDUSTRIES 46956F Miniature Ball Valve, 1/4 in Nominal, FIP x FIP x FIP, 3 -Port/Way, Brass Body

MIDLAND INDUSTRIES 46956F Miniature Ball Valve, 1/4 in Nominal, FIP x FIP x FIP, 3 -Port/Way, Brass Body

MIDLAND INDUSTRIES 46956F Miniature Ball Valve, 1/4 in Nominal, FIP x FIP x FIP, 3 -Port/Way, Brass Body 46956F

MIDLAND INDUSTRIES Miniature Ball Valve, 1/4 in Nominal, Connection Type: FIP x FIP x FIP, 2500 psi, Number of Ports/Ways: 3, Panel-Mount Mounting, Brass Body, PTFE Seat, Fluoroelastomer Stem, Fluoroelastomer Seal, Brass Ball, Nickel-Plated, -40 to 300 deg F, Import

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FIP x FIP x FIP
Domestic/Import      :      Import
Finish      :      Nickel-Plated
Mounting Type      :      Panel-Mount
Nominal Size      :      1/4 in
Number of Ports/Ways      :      3
Pressure Rating      :      2500 psi
Seal Material      :      Fluoroelastomer
Seat Material      :      PTFE
Stem Material      :      Fluoroelastomer
Temperature Rating      :      -40 to 300 deg F
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_3222BVLLXL8_Catalog.pdf
