MIDLAND INDUSTRIES 540604S 540604S

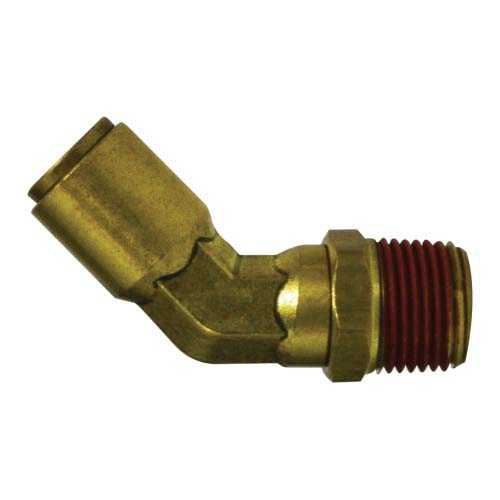

MIDLAND INDUSTRIES 540604S 45 Deg Swivel Elbow, 3/8 in Tube OD x 1/4 in MPT, Brass

MIDLAND INDUSTRIES 54 Series 540604S 45 deg Swivel Elbow, 3/8 in Tube OD x 1/4 in MPT, Brass

MIDLAND INDUSTRIES 54 Series 540604S 45 deg Swivel Elbow, 3/8 in Tube OD x 1/4 in MPT, Brass 540604S

MIDLAND INDUSTRIES 45 deg Swivel Elbow, Series: 54 Series, 45 deg Elbow Fitting, 3/8 in Connection Size 1, Tube OD Connection Type 1, 1/4 in Connection Size 2, MPT Connection Type 2, Tube|MPT Connection, Brass, Brass Material Construction, 3/8-18 x 1/4-18 Thread, 1/2 in Hex, 150 psi Pressure, -40 to 200 deg F, 1.08 x 1.07 in Center to End Size Additional Information

Additional Information      :      1.08 x 1.07 in Center to End Size
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Tube OD
Connection Type 2      :      MPT
Connection Type      :      Tube|MPT
Fitting Type      :      45 deg Elbow
Hex Size      :      1/2 in
Material Construction      :      Brass
Material      :      Brass
Pressure Rating      :      150 psi
Series      :      54 Series
Temperature Rating      :      -40 to 200 deg F
Thread Size      :      3/8-18 x 1/4-18
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_540604S_Full_Engineering_Drawing.pdf
