MIDLAND INDUSTRIES 6805NWO128 6805NWO128

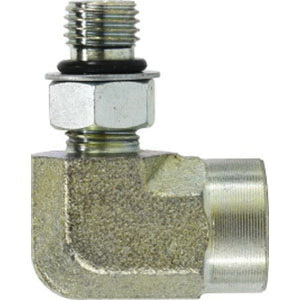

MIDLAND INDUSTRIES 6805NWO128 90 Deg Elbow, 1-1/16 in Male ORB x 1/2 in FIP, Steel

MIDLAND INDUSTRIES 6805NWO128 90 deg Elbow, 1-1/16 in Male ORB x 1/2 in FIP, Steel

MIDLAND INDUSTRIES 6805NWO128 90 deg Elbow, 1-1/16 in Male ORB x 1/2 in FIP, Steel 6805NWO128

MIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 1-1/16 in, Connection Type 1: Male ORB, Connection Size 2: 1/2 in, Connection Type 2: FIP, Steel, 1-1/16-12 x 1/2-14 Thread, Maximum Operating Pressure: 2900 psi, 375 deg F Operating, Additional Information: 12 Dash Number, 3/4 in Tube

Additional Information      :      12 Dash Number, 3/4 in Tube
Connection Size 1      :      1-1/16 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Male ORB
Connection Type 2      :      FIP
Connection Type      :      Male ORB|FIP
Fitting Type      :      90 deg Elbow
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      2900 psi
Operating Temperature      :      375 deg F
Thread Size      :      1-1/16-12 x 1/2-14
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_6805NWO108_Catalog.pdf
