MIDLAND INDUSTRIES 6815NWO1010 6815NWO1010

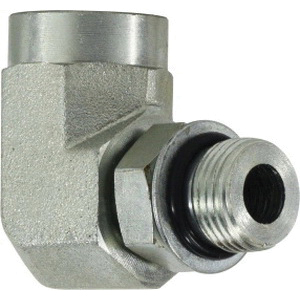

MIDLAND INDUSTRIES 6815NWO1010 90 Deg Elbow, 7/8 in Female ORB x 7/8 in Male ORB, Steel

MIDLAND INDUSTRIES 6815NWO1010 90 deg Elbow, 7/8 in Female ORB x 7/8 in Male ORB, Steel

MIDLAND INDUSTRIES 6815NWO1010 90 deg Elbow, 7/8 in Female ORB x 7/8 in Male ORB, Steel 6815NWO1010

MIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 7/8 in, Connection Type 1: Female ORB, Connection Size 2: 7/8 in, Connection Type 2: Male ORB, Steel, 7/8-14 Thread, Maximum Operating Pressure: 2900 psi, 375 deg F Operating, Additional Information: 10 Dash Number, 5/8 in Tube

Additional Information      :      10 Dash Number, 5/8 in Tube
Connection Size 1      :      7/8 in
Connection Size 2      :      7/8 in
Connection Type 1      :      Female ORB
Connection Type 2      :      Male ORB
Connection Type      :      Female ORB|Male ORB
Fitting Type      :      90 deg Elbow
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      2900 psi
Operating Temperature      :      375 deg F
Thread Size      :      7/8-14
