MIDLAND INDUSTRIES 6815NWO68 6815NWO68

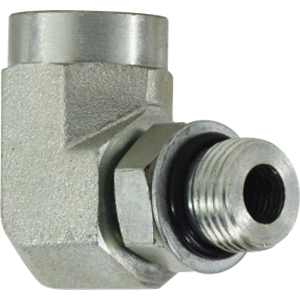

MIDLAND INDUSTRIES 6815NWO68 90 Deg Elbow, 9/16 in Female ORB x 3/4 in Male ORB, Steel

MIDLAND INDUSTRIES 6815NWO68 90 deg Elbow, 9/16 in Female ORB x 3/4 in Male ORB, Steel

MIDLAND INDUSTRIES 6815NWO68 90 deg Elbow, 9/16 in Female ORB x 3/4 in Male ORB, Steel 6815NWO68

MIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 9/16 in, Connection Type 1: Female ORB, Connection Size 2: 3/4 in, Connection Type 2: Male ORB, Steel, 9/16-18 x 3/4-16 Thread, Maximum Operating Pressure: 3600 psi, 375 deg F Operating, Additional Information: 06 Dash Number, 3/8 in Tube

Additional Information      :      06 Dash Number, 3/8 in Tube
Connection Size 1      :      9/16 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Female ORB
Connection Type 2      :      Male ORB
Connection Type      :      Female ORB|Male ORB
Fitting Type      :      90 deg Elbow
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      3600 psi
Operating Temperature      :      375 deg F
Thread Size      :      9/16-18 x 3/4-16
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_6805NWO108_Catalog.pdf
