MIDLAND INDUSTRIES 690606S 690606S

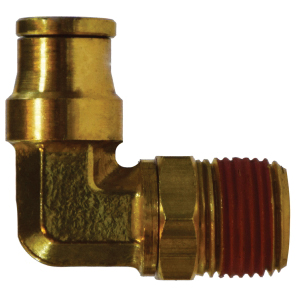

MIDLAND INDUSTRIES 690606S 90 Deg Swivel Elbow, 3/8 in Tube OD x 3/8 in Male NPTF, Brass

MIDLAND INDUSTRIES 690606S 90 deg Swivel Elbow, 3/8 in Tube OD x 3/8 in Male NPTF, Brass

MIDLAND INDUSTRIES 690606S 90 deg Swivel Elbow, 3/8 in Tube OD x 3/8 in Male NPTF, Brass 690606S

MIDLAND INDUSTRIES 90 deg Swivel Elbow, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Tube OD Connection Type 1, 3/8 in Connection Size 2, Male NPTF Connection Type 2, Tube|MNPT Connection, Brass, Forged Brass Material Construction, 3/8-18 Thread, 11/16 in Hex, 1.49 in L Dimensions, 150 psi Pressure, -40 to 200 deg F, 1.08 x 1.19 in Center to End Size, 0.14 lb Weight Additional Information

Additional Information      :      1.08 x 1.19 in Center to End Size, 0.14 lb Weight
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Tube OD
Connection Type 2      :      Male NPTF
Connection Type      :      Tube|MNPT
Dimensions      :      1.49 in L
Fitting Type      :      90 deg Elbow
Hex Size      :      11/16 in
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      150 psi
Temperature Rating      :      -40 to 200 deg F
Thread Size      :      3/8-18
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_690606S_Full_Engineering_Drawing.pdf
