MIDLAND INDUSTRIES 700402 700402

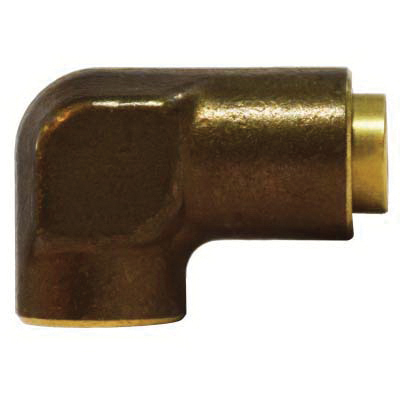

MIDLAND INDUSTRIES 700402 90 Deg Elbow, 1/4 in Tube OD x 1/8 in FNPTF, Brass

MIDLAND INDUSTRIES 700402 90 deg Elbow, 1/4 in Tube OD x 1/8 in FNPTF, Brass

MIDLAND INDUSTRIES 700402 90 deg Elbow, 1/4 in Tube OD x 1/8 in FNPTF, Brass 700402

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 1/4 in Connection Size 1, Tube OD Connection Type 1, 1/8 in Connection Size 2, FNPTF Connection Type 2, Tube|FNPT Connection, Brass, Forged Brass Material Construction, 1/4-18 x 1/8-27 Thread, 3/8 in Hex, 1.06 in L Dimensions, 150 psi Pressure, -40 to 200 deg F, 1.02 x 0.83 in Center to End Size, 0.06 lb Weight Additional Information

Additional Information      :      1.02 x 0.83 in Center to End Size, 0.06 lb Weight
Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Tube OD
Connection Type 2      :      FNPTF
Connection Type      :      Tube|FNPT
Dimensions      :      1.06 in L
Fitting Type      :      90 deg Elbow
Hex Size      :      3/8 in
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      150 psi
Temperature Rating      :      -40 to 200 deg F
Thread Size      :      1/4-18 x 1/8-27
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_700402_Full_Engineering_Drawing.pdf
