MIDLAND INDUSTRIES 700404 700404

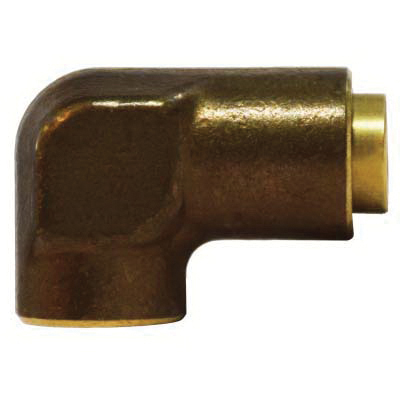

MIDLAND INDUSTRIES 700404 90 Deg Elbow, 1/4 in Tube OD x 1/4 in FNPTF, Brass

MIDLAND INDUSTRIES 700404 90 deg Elbow, 1/4 in Tube OD x 1/4 in FNPTF, Brass

MIDLAND INDUSTRIES 700404 90 deg Elbow, 1/4 in Tube OD x 1/4 in FNPTF, Brass 700404

MIDLAND INDUSTRIES 90 deg Elbow, 90 deg Elbow Fitting, 1/4 in Connection Size 1, Tube OD Connection Type 1, 1/4 in Connection Size 2, FNPTF Connection Type 2, Tube|FNPT Connection, Brass, Forged Brass Material Construction, 1/4-18 Thread, 1/2 in Hex, 1.31 in L Dimensions, 150 psi Pressure, -40 to 200 deg F, 1.12 x 1.02 in Center to End Size, 0.1 lb Weight Additional Information

Additional Information      :      1.12 x 1.02 in Center to End Size, 0.1 lb Weight
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Tube OD
Connection Type 2      :      FNPTF
Connection Type      :      Tube|FNPT
Dimensions      :      1.31 in L
Fitting Type      :      90 deg Elbow
Hex Size      :      1/2 in
Material Construction      :      Forged Brass
Material      :      Brass
Pressure Rating      :      150 psi
Temperature Rating      :      -40 to 200 deg F
Thread Size      :      1/4-18
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_700404_Full_Engineering_Drawing.pdf
