MIDLAND INDUSTRIES 940175 940175

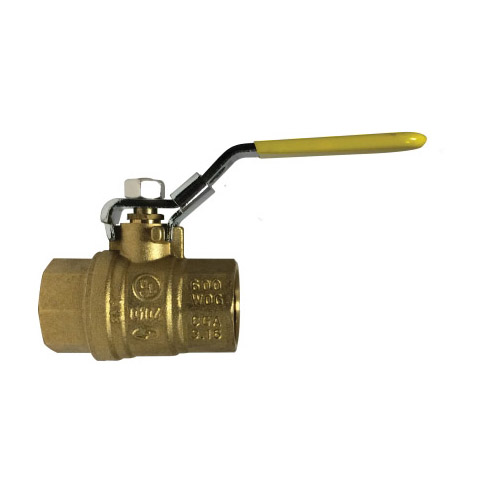

MIDLAND INDUSTRIES 940175 Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 940175 Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 940175 Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP 940175

MIDLAND INDUSTRIES Ball Valve, 1 in Nominal, FNPT Connection, Full Port, 600 psi WOG, 150 psi WSP Pressure, 2-3/4 in Inlet to Outlet Length, 2.68 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass/Steel Trim, Steel Handle, Brass Ball, -22 to 302 deg F, 2-3/4 in L Dimensions, Import, Additional Information: 1-11-1/2 Thread Size

Additional Information      :      1-11-1/2 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      2-3/4 in L
Domestic/Import      :      Import
Handle Material      :      Steel
Inlet to Outlet Length      :      2-3/4 in
Nominal Size      :      1 in
Operator Type      :      Handle
Port Type      :      Full
Pressure Rating      :      600 psi WOG, 150 psi WSP
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -22 to 302 deg F
Top to Inlet Center      :      2.68 in
Trim Material      :      Brass/Steel
