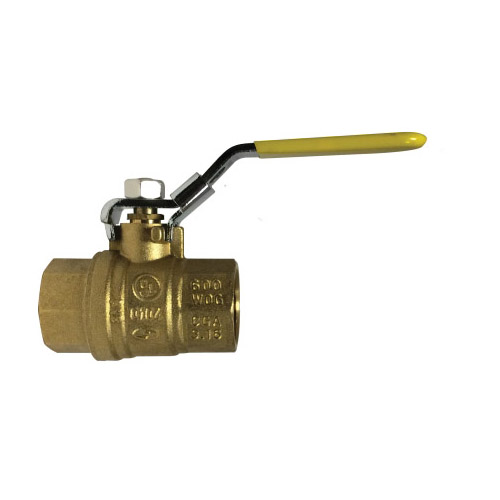

MIDLAND INDUSTRIES 940175L Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 940175L Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 940175L Ball Valve, 1 in, FNPT, Brass, 600 psi WOG, 150 psi WSP 940175L

MIDLAND INDUSTRIES Ball Valve, 1 in Nominal, FNPT Connection, Full Port, 600 psi WOG, 150 psi WSP Pressure, 2.95 in Inlet to Outlet Length, 2.67 in Top to Inlet Center, Locking Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass/Steel Trim, Steel Handle, Brass Ball, -22 to 302 deg F, 2.95 in L Dimensions, Import, Additional Information: 1-11-1/2 Thread Size

Additional Information      :      1-11-1/2 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      2.95 in L
Domestic/Import      :      Import
Handle Material      :      Steel
Inlet to Outlet Length      :      2.95 in
Nominal Size      :      1 in
Operator Type      :      Locking Handle
Port Type      :      Full
Pressure Rating      :      600 psi WOG, 150 psi WSP
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -22 to 302 deg F
Top to Inlet Center      :      2.67 in
Trim Material      :      Brass/Steel
