MIDLAND INDUSTRIES 940179 940179

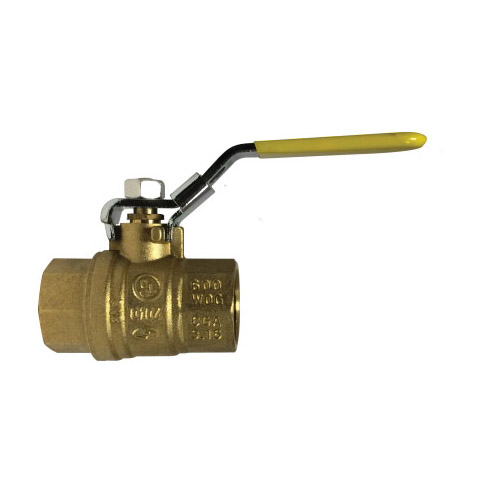

MIDLAND INDUSTRIES 940179 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi WOG

MIDLAND INDUSTRIES 940179 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi WOG

MIDLAND INDUSTRIES 940179 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi WOG 940179

MIDLAND INDUSTRIES Ball Valve, 2-1/2 in Nominal, FNPT Connection, Full Port, 400 psi WOG Pressure, 5.38 in Inlet to Outlet Length, 4.76 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass/Steel Trim, Steel Handle, Brass Ball, -22 to 302 deg F, 5.38 in L Dimensions, Import, Additional Information: 2-1/2-8 Thread Size

Additional Information      :      2-1/2-8 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      5.38 in L
Domestic/Import      :      Import
Handle Material      :      Steel
Inlet to Outlet Length      :      5.38 in
Nominal Size      :      2-1/2 in
Operator Type      :      Handle
Port Type      :      Full
Pressure Rating      :      400 psi WOG
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -22 to 302 deg F
Top to Inlet Center      :      4.76 in
Trim Material      :      Brass/Steel
