MIDLAND INDUSTRIES 940205 940205

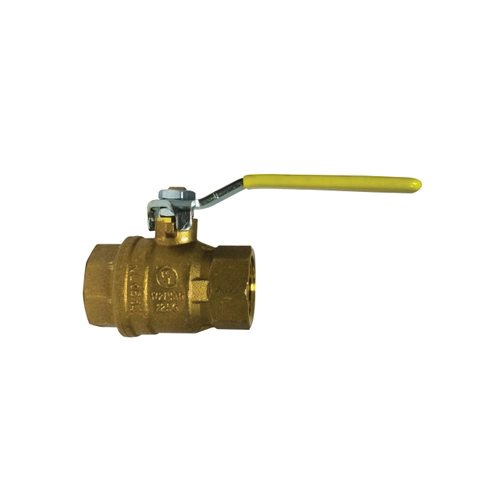

MIDLAND INDUSTRIES 940205 Italian Ball Valve, 1-1/4 in Nominal, FNPT x FNPT, 600 psi WOG Pressure

MIDLAND INDUSTRIES 940205 Italian Ball Valve, 1-1/4 in Nominal, FNPT x FNPT, 600 psi WOG Pressure

MIDLAND INDUSTRIES 940205 Italian Ball Valve, 1-1/4 in Nominal, FNPT x FNPT, 600 psi WOG Pressure 940205

MIDLAND INDUSTRIES Italian Ball Valve, 1-1/4 in Nominal, Connection Type: FNPT x FNPT, Full Port, 600 psi WOG, Gas, Oil, Water Media, 3-1/2 in L Inlet to Outlet, 2.32 in Top to Inlet Center, Reversible Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, TFE Seal, Steel Nut, NBR 80 O-Ring Trim, Plated Steel Handle, Chrome-Plated Brass Ball, Lead-Free/Contains Lead: Contains Lead, -20 to 248 deg F, Import, Additional Information: 1-1/4-11-1/2 Thread Size, Brass Ring, Steel and Brass Nut

Additional Information      :      1-1/4-11-1/2 Thread Size, Brass Ring, Steel and Brass Nut
Ball Material      :      Chrome-Plated Brass
Body Material      :      Forged Brass
Connection Type      :      FNPT x FNPT
Domestic/Import      :      Import
Handle Material      :      Plated Steel
Inlet to Outlet Length      :      3-1/2 in
Lead-Free/Contains Lead      :      Contains Lead
Media      :      Gas, Oil, Water
Nominal Size      :      1-1/4 in
Operator Type      :      Reversible Handle
Port Type      :      Full
Pressure Rating      :      600 psi WOG
Seal Material      :      TFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -20 to 248 deg F
Top to Inlet Center      :      2.32 in
Trim Material      :      Steel Nut, NBR 80 O-Ring
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_940203_Catalog.pdf
