MIDLAND INDUSTRIES 941123NP 941123NP

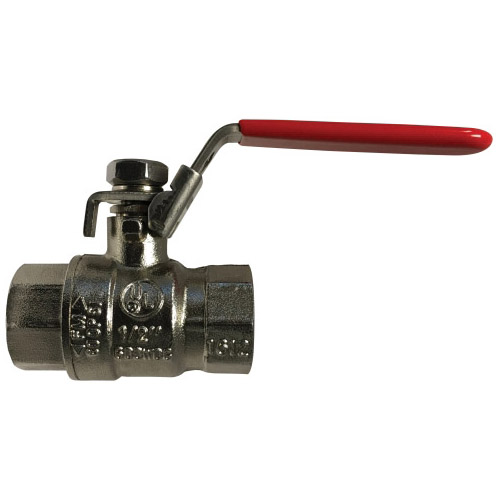

MIDLAND INDUSTRIES 941123NP Ball Valve, 1/2 in, FPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 941123NP Ball Valve, 1/2 in, FPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 941123NP Ball Valve, 1/2 in, FPT, Brass, 600 psi WOG, 150 psi WSP 941123NP

MIDLAND INDUSTRIES Ball Valve, 1/2 in Nominal, FPT Connection, Full Port, 600 psi WOG, 150 psi WSP Pressure, 2.24 in Inlet to Outlet Length, 2.02 in Top to Inlet Center, Locking Handle Operator, 18.55 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Stainless Steel Stem, Brass/Stainless Steel Trim, PTFE Packing Material, Stainless Steel Handle, Stainless Steel Ball, FKM Softgoods, Nickel-Plated, -20 to 300 deg F, 2.24 in L Dimensions, Import, Additional Information: 1/2-14 Thread Size, 29 inHg Vacuum Service

Additional Information      :      1/2-14 Thread Size, 29 inHg Vacuum Service
Ball Material      :      Stainless Steel
Body Material      :      Brass
Connection Type      :      FPT
Dimensions      :      2.24 in L
Domestic/Import      :      Import
Finish      :      Nickel-Plated
Flow Coefficient (Cv)      :      18.55 Cv
Handle Material      :      Stainless Steel
Inlet to Outlet Length      :      2.24 in
Nominal Size      :      1/2 in
Operator Type      :      Locking Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      600 psi WOG, 150 psi WSP
Seat Material      :      PTFE
Softgoods Material      :      FKM
Stem Material      :      Stainless Steel
Temperature Rating      :      -20 to 300 deg F
Top to Inlet Center      :      2.02 in
Trim Material      :      Brass/Stainless Steel
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_940171_Catalog.pdf
