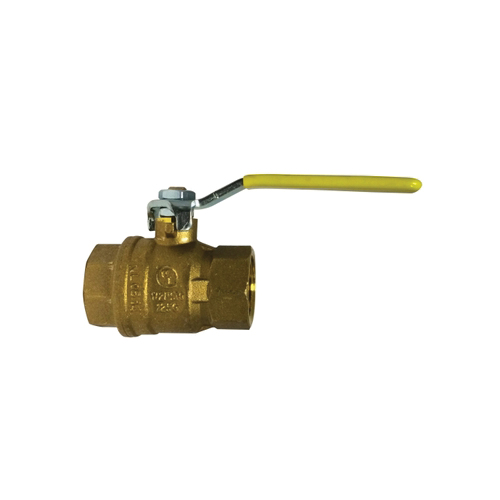

MIDLAND INDUSTRIES 943200T Italian Ball Valve, 1/4 x 1/4 in Nominal, FIP x FIP, 600 psi Pressure, Brass Body
MIDLAND INDUSTRIES 943200T Italian Ball Valve, 1/4 x 1/4 in Nominal, FIP x FIP, 600 psi Pressure, Brass Body
MIDLAND INDUSTRIES 943200T Italian Ball Valve, 1/4 x 1/4 in Nominal, FIP x FIP, 600 psi Pressure, Brass Body 943200T- Brand Name: MIDLAND INDUSTRIES
- Part Number: 943200T
- UPC: 642688861254
- Check Stock
Add To Favorites ListMIDLAND INDUSTRIES Italian Ball Valve, 1/4 x 1/4 in Nominal, Connection Type: FIP x FIP, Full Port, 600 psi, Gas, Oil, Water Media, 1.96 in L Inlet to Outlet, 1.53 in Top to Inlet Center, T-Handle Operator, Brass Body, PTFE Seat, Brass Stem, NBR 80 Seal, Steel Handle, Brass Ball, Lead-Free/Contains Lead: Contains Lead, -20 to 248 deg F, Domestic, Additional Information: 1/4-18 Thread Size, Brass Ring, Steel and Brass Nut
| Additional Information | : | 1/4-18 Thread Size, Brass Ring, Steel and Brass Nut |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | FIP x FIP |
| Domestic/Import | : | Domestic |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 1.96 in |
| Lead-Free/Contains Lead | : | Contains Lead |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 1/4 x 1/4 in |
| Operator Type | : | T-Handle |
| Port Type | : | Full |
| Pressure Rating | : | 600 psi |
| Seal Material | : | NBR 80 |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | -20 to 248 deg F |
| Top to Inlet Center | : | 1.53 in |
