MIDLAND INDUSTRIES 943203 943203

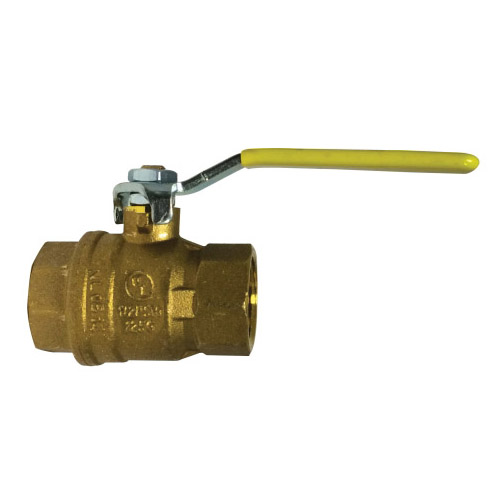

MIDLAND INDUSTRIES 943203 Italian Ball Valve, 3/4 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 943203 Italian Ball Valve, 3/4 in, FNPT, Brass, 600 psi WOG, 150 psi WSP

MIDLAND INDUSTRIES 943203 Italian Ball Valve, 3/4 in, FNPT, Brass, 600 psi WOG, 150 psi WSP 943203

MIDLAND INDUSTRIES Italian Ball Valve, 3/4 in Nominal, FNPT Connection, Full Port, 600 psi WOG, 150 psi WSP Pressure, 2.28 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, TFE Seal, Steel Trim, Steel Handle, Brass Ball, NBR Softgoods, 20 to 248 deg F, 2.28 in L Dimensions, Import, Additional Information: 3/4-14 Thread Size

Additional Information      :      3/4-14 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      2.28 in L
Domestic/Import      :      Import
Handle Material      :      Steel
Inlet to Outlet Length      :      2.28 in
Nominal Size      :      3/4 in
Operator Type      :      Handle
Port Type      :      Full
Pressure Rating      :      600 psi WOG, 150 psi WSP
Seal Material      :      TFE
Seat Material      :      PTFE
Softgoods Material      :      NBR
Stem Material      :      Brass
Temperature Rating      :      20 to 248 deg F
Top to Inlet Center      :      1.77 in
Trim Material      :      Steel
