MIDLAND INDUSTRIES 943234 943234

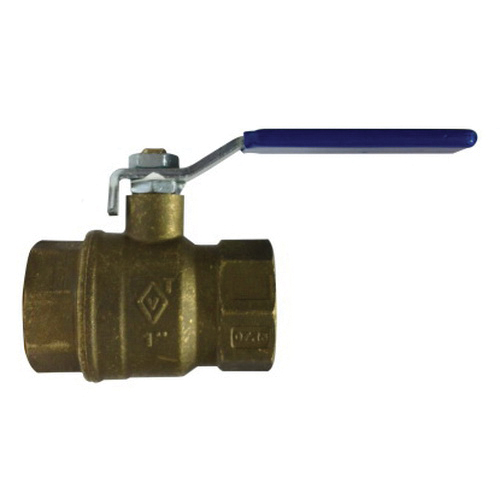

MIDLAND INDUSTRIES 943234 Ball Valve, 3/4 in Nominal, FIP x FIP, 600 psi WOG Pressure, -20 to 248 deg F

MIDLAND INDUSTRIES 943234 Ball Valve, 3/4 in Nominal, FIP x FIP, 600 psi WOG Pressure, -20 to 248 deg F

MIDLAND INDUSTRIES 943234 Ball Valve, 3/4 in Nominal, FIP x FIP, 600 psi WOG Pressure, -20 to 248 deg F 943234

MIDLAND INDUSTRIES Ball Valve, 3/4 in Nominal, Connection Type: FIP x FIP, 600 psi WOG, 2.28 in L Inlet to Outlet, 1.77 in Top to Inlet Center, 1/4 Turn Handle Operator, Material Standard: CW510L, CW614N, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Stem Nut Trim, PTFE Packing, Carbon Steel Handle, Brass Ball, Lead-Free/Contains Lead: Contains Lead, -20 to 248 deg F, 2.28 in L, Import, Additional Information: 3/4-14 Thread Size, 0.560 lb Weight

Additional Information      :      3/4-14 Thread Size, 0.560 lb Weight
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FIP x FIP
Dimensions      :      2.28 in L
Domestic/Import      :      Import
Handle Material      :      Carbon Steel
Inlet to Outlet Length      :      2.28 in
Lead-Free/Contains Lead      :      Contains Lead
Material Standard      :      CW510L, CW614N
Nominal Size      :      3/4 in
Operator Type      :      1/4 Turn Handle
Packing Material      :      PTFE
Pressure Rating      :      600 psi WOG
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -20 to 248 deg F
Top to Inlet Center      :      1.77 in
Trim Material      :      Steel Stem Nut
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_940212_Catalog.pdf
